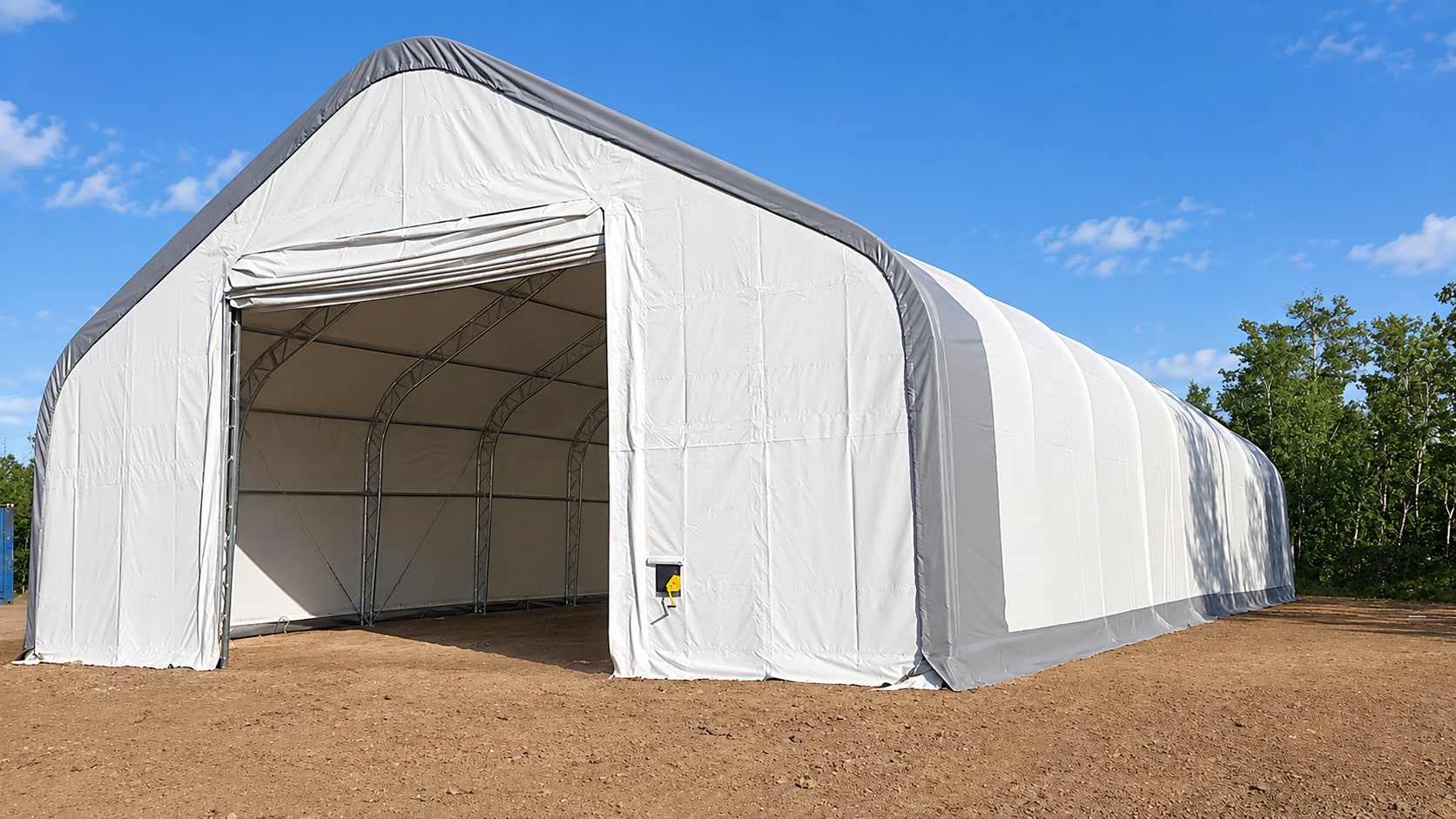

40' × 60' × 23'
750g PVC Storage Building
*Estimated monthly payment for illustrative purposes only. Actual terms set by First Capital Leasing upon approval.
The 40' width opens up real working space — room for a combine header, large tractors, or side-by-side equipment rows. The 23' peak height handles tall loads with ease.
What’s Included
26.5oz (750g) PVC Fabric Cover
Up to 40% heavier than competitors' advertised covers. Commercial-grade, waterproof, UV-resistant, and fire-retardant — no upgrade fees, no surprise costs.

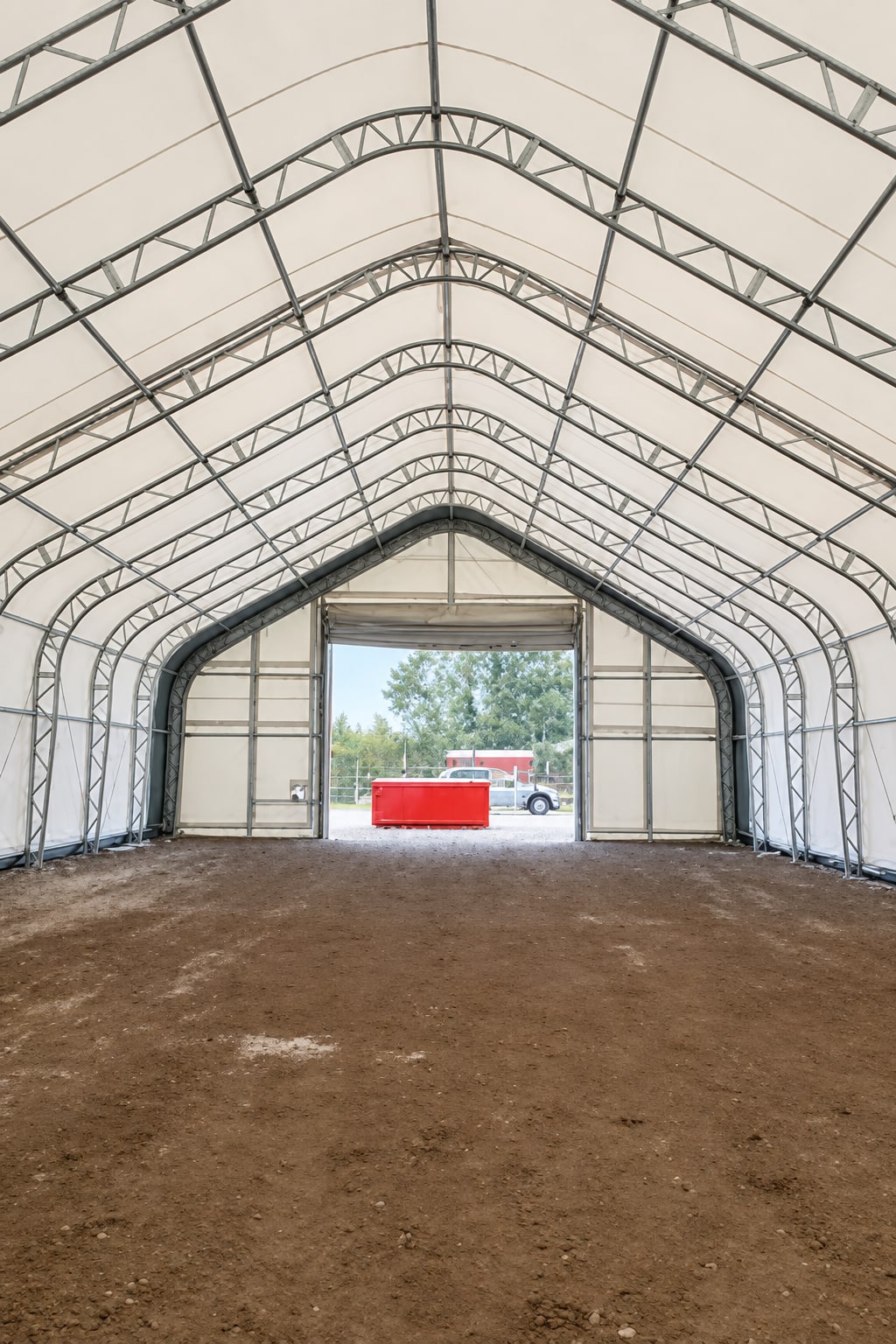

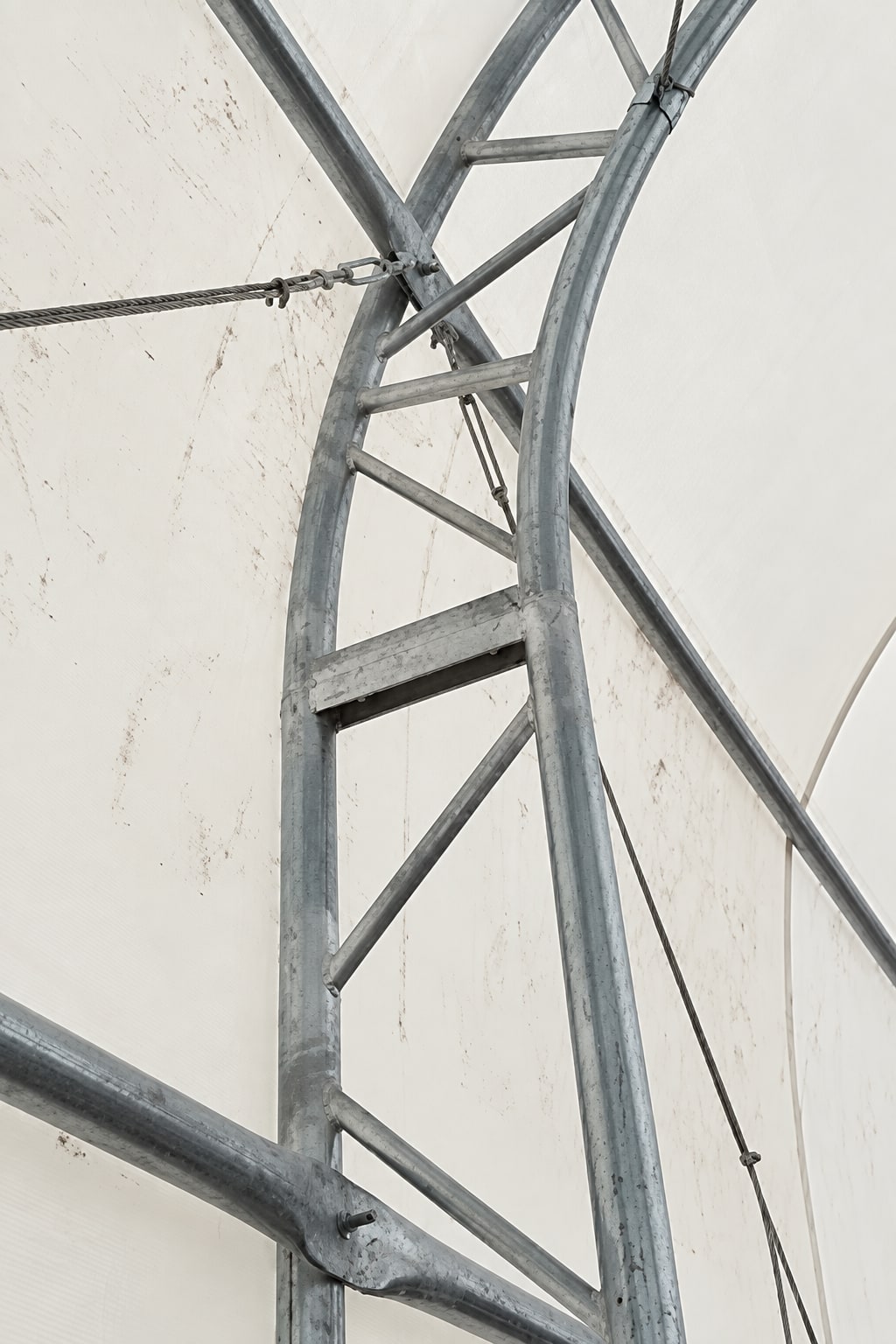

Double Truss Frame Design
3.05m (10') arch spacing for enhanced structural support in high wind or snow regions.
Galvanized Steel Arches & Purlins
Rust-resistant galvanized steel tubing — 60mm arch and purlin with 1.5mm wall thickness — built to withstand Canadian conditions for decades.
Bolt-Together Arch Assembly
Easy transport and fast setup — no welding required. Most buildings assembled in 1–4 days.
Quad Tension System
Keeps the cover taut for added longevity and protection against wind and weather.
Straight Sidewalls
Maximum usable space for storing equipment, vehicles, or tall racks — no wasted sloped areas.

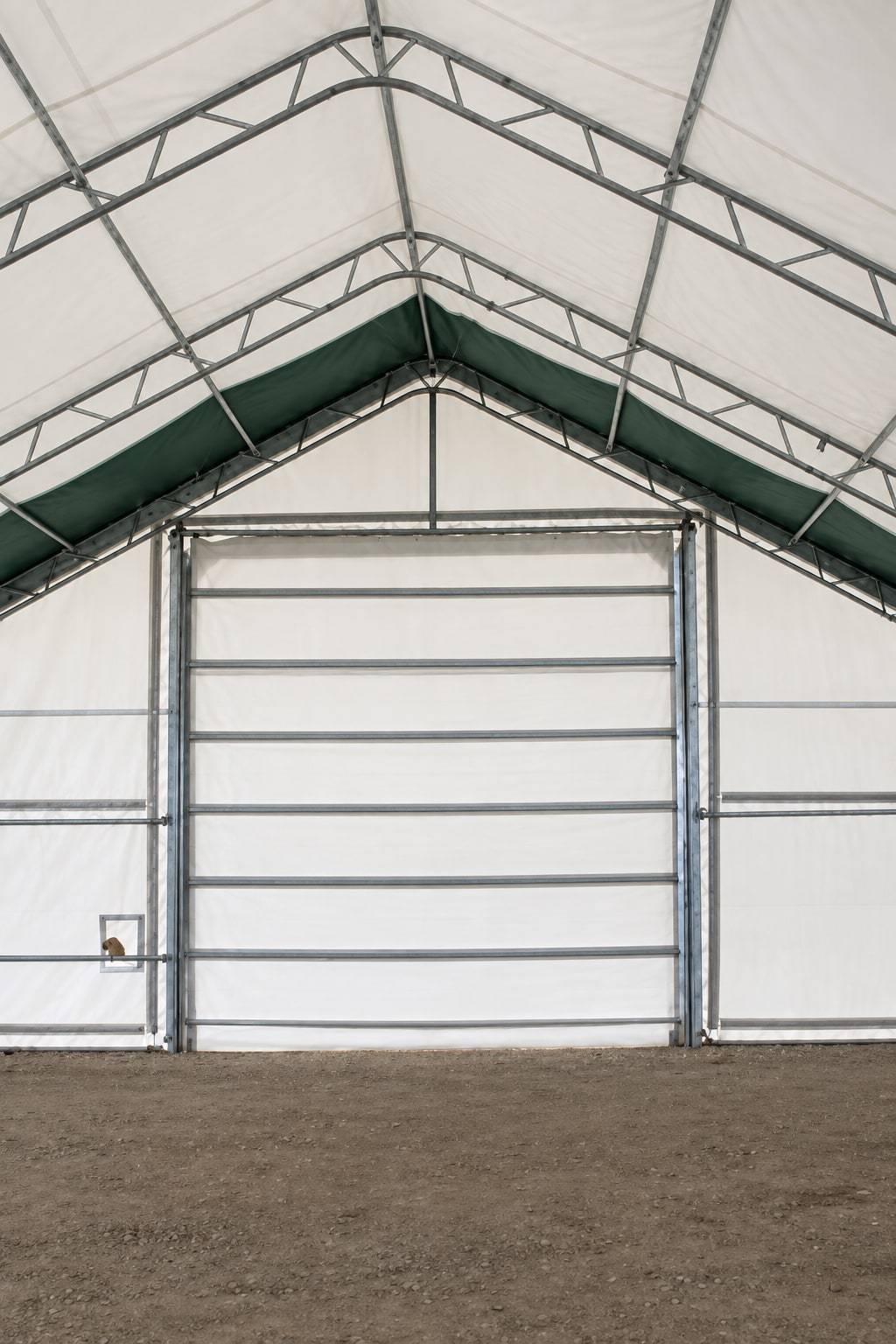

Front & Back Winch Roll-Up Doors
Drive-through access for large equipment and vehicles from either end.
2 Zipper Man Doors
Convenient walk-through access included — no need to open the main doors for quick entry.
Structural Specifications
| Footprint | 40' × 60' (2,400 sq ft) |
|---|---|
| Peak Height | 23 ft |
| Coverage Area | 2,400 ft² |
| Frame | Commercial-grade double-truss galvanized steel frame |
| Steel Tubing | Galvanized — 60mm arch (1.5mm wall), 60mm purlin (1.5mm wall) |
| Frame Spacing | 3.05m (10') on center |
| Truss Design | Double Truss |
| Cover Material | 750g (26.5oz) PVC — UV-resistant, waterproof, fire-retardant |
| Main Doors | Front & back winch roll-up doors |
| Man Doors | 2 × zipper man doors included |
| Assembly | Bolt-together; no welding required |

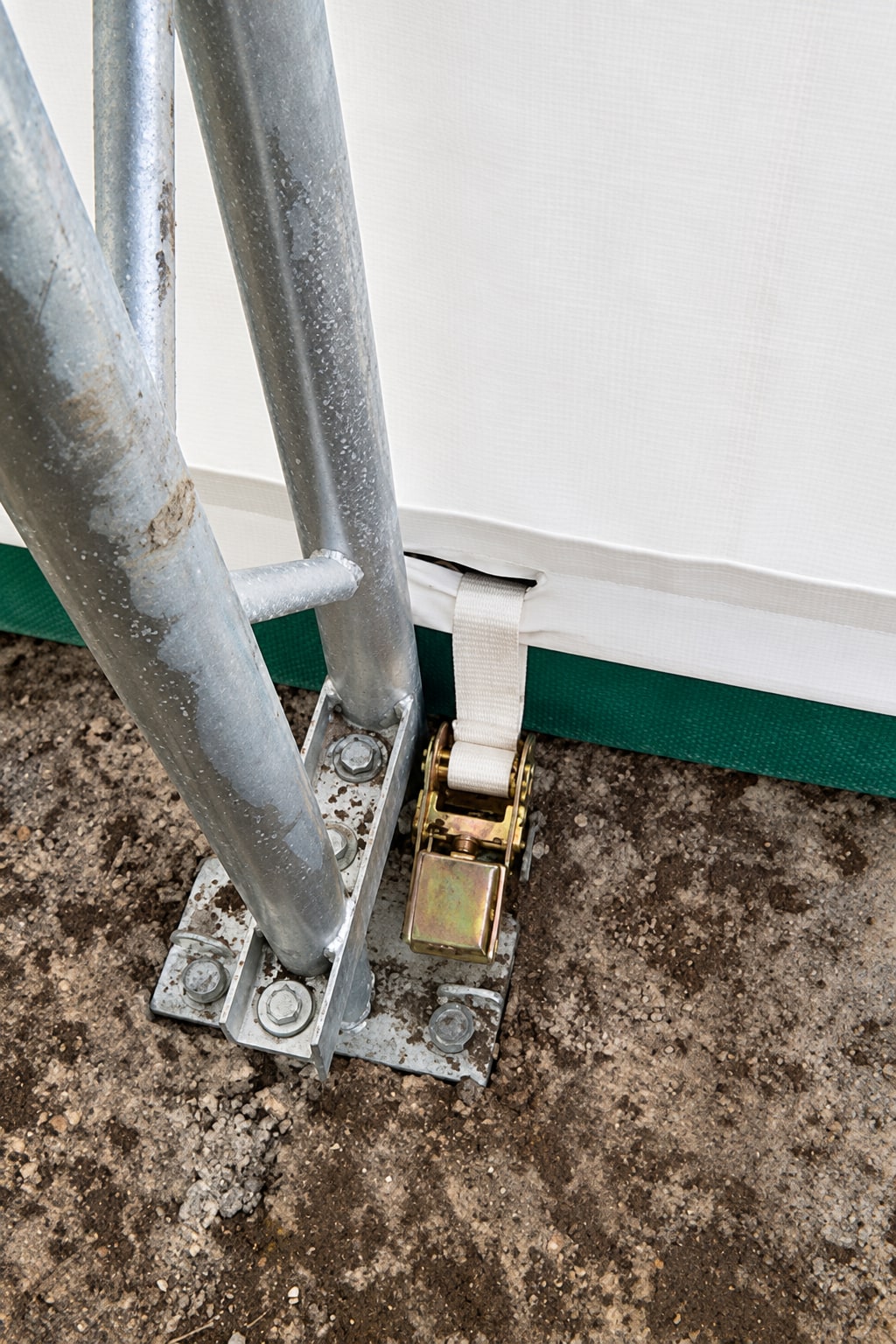

| Foundation | Ground anchors included (concrete optional) |
Ideal For
- Combines and headers
- Large tractors and implements
- Side-by-side equipment rows
- Commercial vehicle storage
- Grain overflow staging
The Bottom Line
The 40' × 60' × 23' fabric storage building delivers 2,400 square feet of protected space for $16,888 — roughly ~$259/mo with financing. Built on a galvanized double-truss steel frame with a 750g PVC cover, it handles Canadian snow loads and prairie winds while costing 40–60% less than an equivalent steel or wood building. Popular applications include Mixed farm equipment, hay and machinery, medium livestock shelter, construction equipment. Ships anywhere in Canada from Edmonton or Toronto distribution hubs.
Ready to Order Your 40' × 60' Building?
Financing available — get approved in as little as 4 hours. Ships anywhere in Canada.
Get Approved for Financing Get Your PriceFrequently Asked Questions
How much does a 40' × 60' fabric building cost?
The MAX 40' × 60' × 23' fabric storage building is priced at $16,888 CAD, which includes the complete galvanized double-truss steel frame, 750g PVC cover, all hardware, and assembly instructions. Financing is available through First Capital Leasing at approximately ~$259/mo, with 95% approval rates and decisions in as little as 4 hours.
What can I store in a 2,400 square foot fabric building?
A 2,400 sq ft building (40' × 60') provides enough space for Mixed farm equipment, hay and machinery, medium livestock shelter, construction equipment. The 23-foot peak height at centre allows clearance for tall equipment and efficient vertical stacking. The clear-span interior has no columns or obstructions, so every square foot is usable storage space.
How long does it take to assemble a 40' × 60' fabric building?
The 40' × 60' building typically takes 2–3 days with a crew of 4–6. All connections are bolt-together — no welding or specialized tools required. A telehandler or forklift is recommended for raising the trusses on this size building.
